Devices & Databases (Battery Manager)

The following devices and databases are supported by the current version of Battery Manager.

Charging devices for rechargeables/packs

Device Charge Manager 2010 Conrad Charge Manager 2010
Manufacturer Conrad Electronic SE (Germany)
Type Charging device
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • 4 bays
  • Programs CHA, DIS, CHK, CYC, ALV
  • Log interval >= 1 s
  • Null modem cable required
  • Connecting to USB possible with adapter based on Prolific PL2303 chipset
  • Internal cooling ventilator
Device Charge Manager 2015 VOLTCRAFT Charge Manager 2015
Manufacturer Conrad Electronic SE (Germany)
Type Charging device
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • 6 bays
  • Programs CHA, DIS, CHK, CYC, ALV
  • Log interval >= 2 s
  • Null modem cable required
  • Connecting to USB possible with adapter based on Prolific PL2303 chipset
  • Internal cooling ventilator
Device Charge Manager 2016 VOLTCRAFT Charge Manager 2016
Manufacturer Conrad Electronic SE (Germany)
Type Charging device
Interface USB
Baud Rate 19200
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • 6 bays
  • Programs CHA, DIS, CHK, CYC, ALV
  • Log interval >= 2 s
  • USB cable required
  • Internally mapped as COM port (RS-232) by separate driver
  • No internal cooling ventilator
Device Charge Manager 2020 VOLTCRAFT Charge Manager 2020
Manufacturer Conrad Electronic SE (Germany)
Type Charging device
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • 10 bays
  • Programs CHA, DIS, CHK, CYC, ALV
  • Log interval >= 2 s
  • Null modem cable required
  • Connecting to USB possible with adapter based on Prolific PL2303 chipset
  • Internal cooling ventilator

Barcode readers for battery identification

Device Voyager 9520 RS232 Honeywell Voyager 9520 RS232
Manufacturer Honeywell International Inc. (U.S.A.)
Type Barcode Reader
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • Automatic laser hand-held barcode scanner
  • Supports all standard 1D barcodes incl. GS1 DataBar™
  • Data format TEXT/CRLF
  • Shipped with RS-232 cable, power supply, and stand
  • Connecting to USB possible with adapter based on Prolific PL2303 chipset
Device Voyager 9520 USB Honeywell Voyager 9520 USB
Manufacturer Honeywell International Inc. (U.S.A.)
Type Barcode Reader
Interface USB
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • Automatic laser hand-held barcode scanner
  • Supports all standard 1D barcodes incl. GS1 DataBar™
  • Data format TEXT/CRLF
  • Shipped with USB cable, power supply, and stand
  • Internally mapped as COM port (RS-232) by USB Serial Driver
  • Requires prior scanning of special "Serial Emulation Mode" barcode
Device 2009 RS232 Glancetron 2009 RS232
Manufacturer Glancetron Co., Ltd. (China)
Type Barcode Reader
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • CCD touch hand-held barcode scanner
  • Supports all commonly used barcodes
  • Data format TEXT/CRLF
  • Shipped with RS-232 cable
  • Power supply is optional (use 2009r/slotrsw 2,5 VAC or standard 9V 200 mAh)
  • Connecting to USB possible with adapter based on Prolific PL2303 chipset

RFID readers for battery identification

Device A30A-RS232 I-KEYS A30A-RS232
Manufacturer I-KEYS RFID-Technik (Germany)
Type RFID Reader
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • Frequency 125 kHz (Low Frequency LF)
  • Chips EM4102, EM4100, GK4001
  • Tag format Hexadecimal 10
  • Not assembled (without plug)
  • Not usable for for very small glass tags
Device HYA-02 HuaYuan HYA-02
Manufacturer Shanghai HuaYuan Electronic Co. Ltd. (China)
Type RFID Reader
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • Frequency 125 kHz (Low Frequency LF)
  • Chips EM4102, EM4100, GK4001
  • optional with Wiegand/RS-485
  • Tag formats Wiegand, 10 Hex, 8 Hex, 10 Dez, Custom
  • Not assembled (without plug)
  • Not usable for for very small glass tags
Device RFID Reader 125Khz Sumlung RFID Reader 125Khz
Manufacturer Shanghai Sumlung Information Technology Co. Ltd. (China)
Type RFID Reader
Interface RS-232
Baud Rate 9600
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • Frequency 125 kHz (Low Frequency LF)
  • Chips EM4102, EM4200, TK4100, GK4001
  • Tag format Decimal 10
  • Not assembled (without plug)
  • Recognizes also very small glass tags

Miscellaneous devices

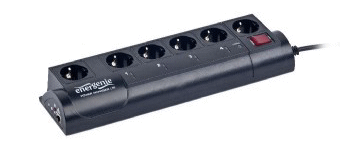

Device EnerGenie EG-PM2-LAN Gembird EnerGenie EG-PM2-LAN
Manufacturer Gembird Europe B.V. (Netherlands)
Type Power management
Interface LAN
Remarks
  • 4 programmable plugs, 2 permanent plugs
  • Total output 2500 W at 230V AC
  • No surge protector
Device EnerGenie EG-PMS2-LAN Gembird EnerGenie EG-PMS2-LAN
Manufacturer Gembird Europe B.V. (Netherlands)
Type Power management
Interface LAN
Remarks
  • 4 programmable plugs, 2 permanent plugs
  • Total output 2500 W at 230V AC
  • Includes surge protector

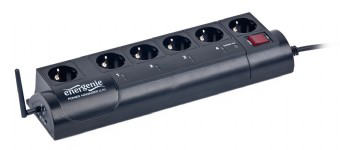

Device EnerGenie EG-PMS2-WLAN Gembird EnerGenie EG-PMS2-WLAN
Manufacturer Gembird Europe B.V. (Netherlands)
Type Power management
Interface WLAN
Remarks
  • 4 programmable plugs, 2 permanent plugs
  • Total output 2500 W at 230V AC
  • Includes surge protector
Device UniControl 4.36 CL Systems UniControl 4.36
Manufacturer CL Systems e.K. (Germany)
Type Power switch
Interface RS-232
Baud Rate 1200
Data Bits 8
Stop Bits 1
Parity None
Flow Control None
Remarks
  • 4 programmable plugs, 1 permanent plug
  • Total output 3600 VA at 230V AC
  • Shipped with RS-232 cable
  • Connecting to USB possible with adapter based on Prolific PL2303 chipset

Databases

Release Versions Tested Operating Systems
Apache Derby 10.1 10.1.1.0-10.1.3.1
Apache Derby 10.2 10.2.1.6-10.2.2.0
Apache Derby 10.3 10.3.3.0
Apache Derby 10.4 10.4.1.3-10.4.2.0
Apache Derby 10.5 10.5.1.1-10.5.3.0
Apache Derby 10.6 10.6.1.0-10.6.2.1
Apache Derby 10.7 10.7.1.1
Apache Derby 10.8 10.8.1.2-10.8.2.2
Apache Derby 10.9 10.9.1.0 YES See system requirements
Apache Derby 10.10 10.10.1.1

Remarks

  • Currently Battery Manager is shipped with Apache Derby 10.9.1.0
Release Versions Tested Operating Systems
MySQL 5.0 5.0.0-5.0.96 YES SuSE Linux Enterprise Server 10 (AMD64)
MySQL 5.1 5.1.3-5.1.68
MySQL 5.5 5.5.0-5.5.36 YES SuSE Linux Enterprise Server 11 (AMD64)
MySQL 5.6 5.6.2-5.6.16
MySQL 5.7 5.7 DMR1

Remarks

  • None
Release Versions Tested Operating Systems
Oracle9i Database Release 1 9.0.1.0-9.0.1.5
Oracle9i Database Release 2 9.2.0.1-9.2.0.8
Oracle Database 10g Release 1 10.1.0.2-10.1.0.5
Oracle Database 10g Release 2 10.2.0.1-10.2.0.5
Oracle Database 11g Release 1 11.1.0.6-11.1.0.7 YES SuSE Linux Enterprise Server 10 (AMD64)
Oracle Database 11g Release 2 11.2.0.1-11.2.0.4 YES Microsoft Windows 8 (64-bit)
Oracle Database 12c Release 1 12.1
Oracle Database 12c Release 1 12.1.0.2.0

Remarks

  • None
